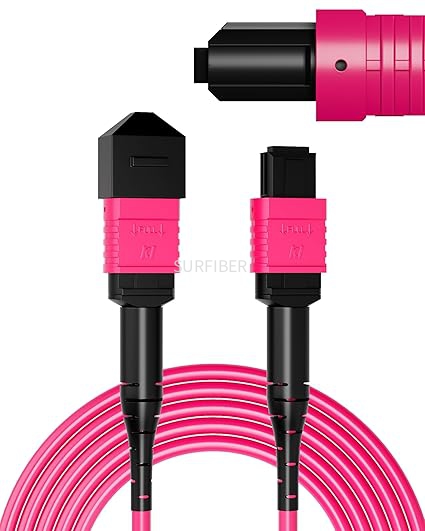

    MPO/MTP Patch Cord Cable, 12 Core, Multimode OM4 LSZH,  Female or Male, Type A B C, IL≤0.35dB


    MPO/MTP Patch Cord Cable, 12 Core, Multimode OM4 LSZH,  Female or Male, Type A B C, IL≤0.35dB


    Item
    Specification
    Item
    Specification
    Connector A
    MPO
    Connector B
    MPO

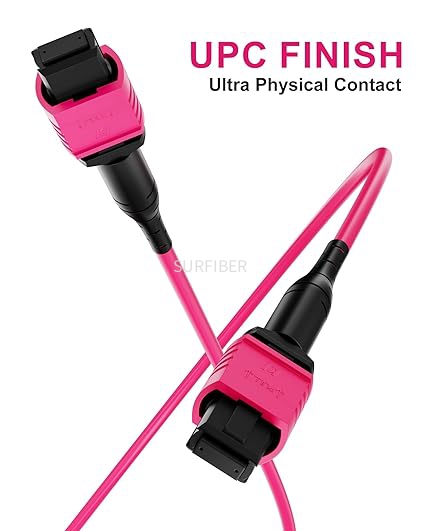

    Polish Type
    UPC to UPC
    Glass Fiber
    Multimode Fiber

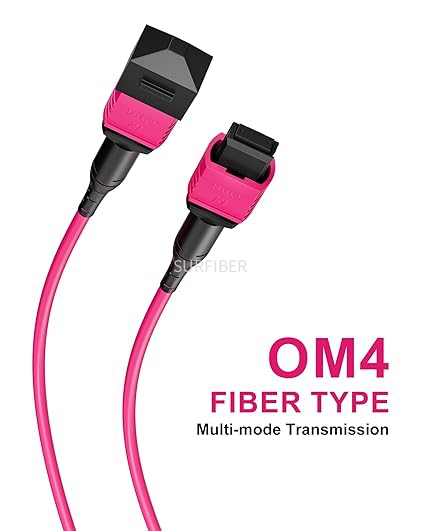

    Fiber Mode
    OM4 50/125μm
    Wavelength
    850/1300nm

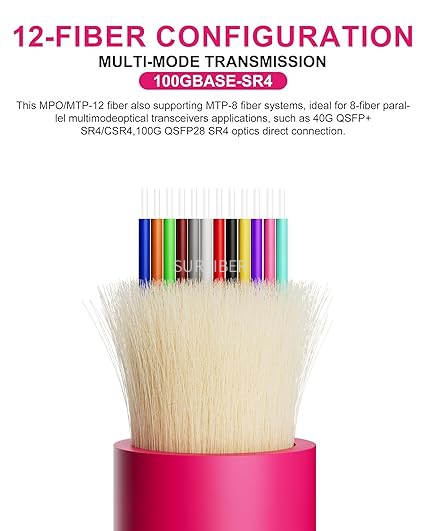

    Fiber Count
    12 Fibers
    Polarity
    Type A,B,C for Choice
    Cable Outside Diameter (OD)
    3.0mm

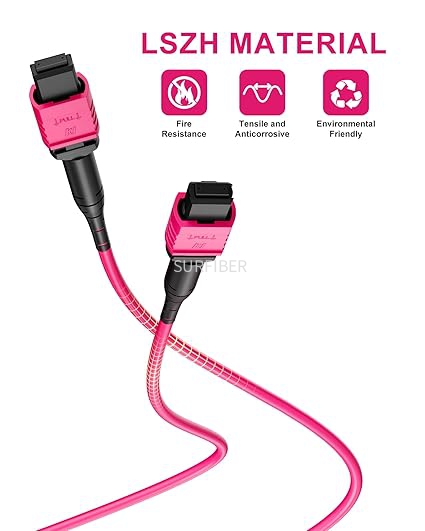

    Cable Jacket
    LSZH
    Min. Bend Radius (Optical Fiber)
    7.5mm
    Min. Bend Radius (Fiber Cable)
    20/10D (Dynamic/Static)
    Connector Durability
    500 times
    Tensile Strength
    80/240N (Long/Short Term)
    Insertion Loss
    0.35dB Max (0.15dB Typ.)

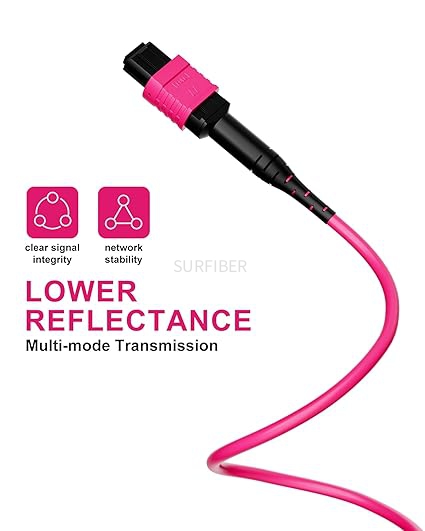

    Return Loss
    ≥20dB
    Attenuation @ 850nm
    ≤2.3dB/km
    Attenuation @ 1300nm
    ≤0.6dB/km
    Operating Temperature
    -10°C to 60°C (14℉ to 140℉)
    Storage Temperature
    -10°C to 70°C (14℉ to 158℉)
