  • High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C

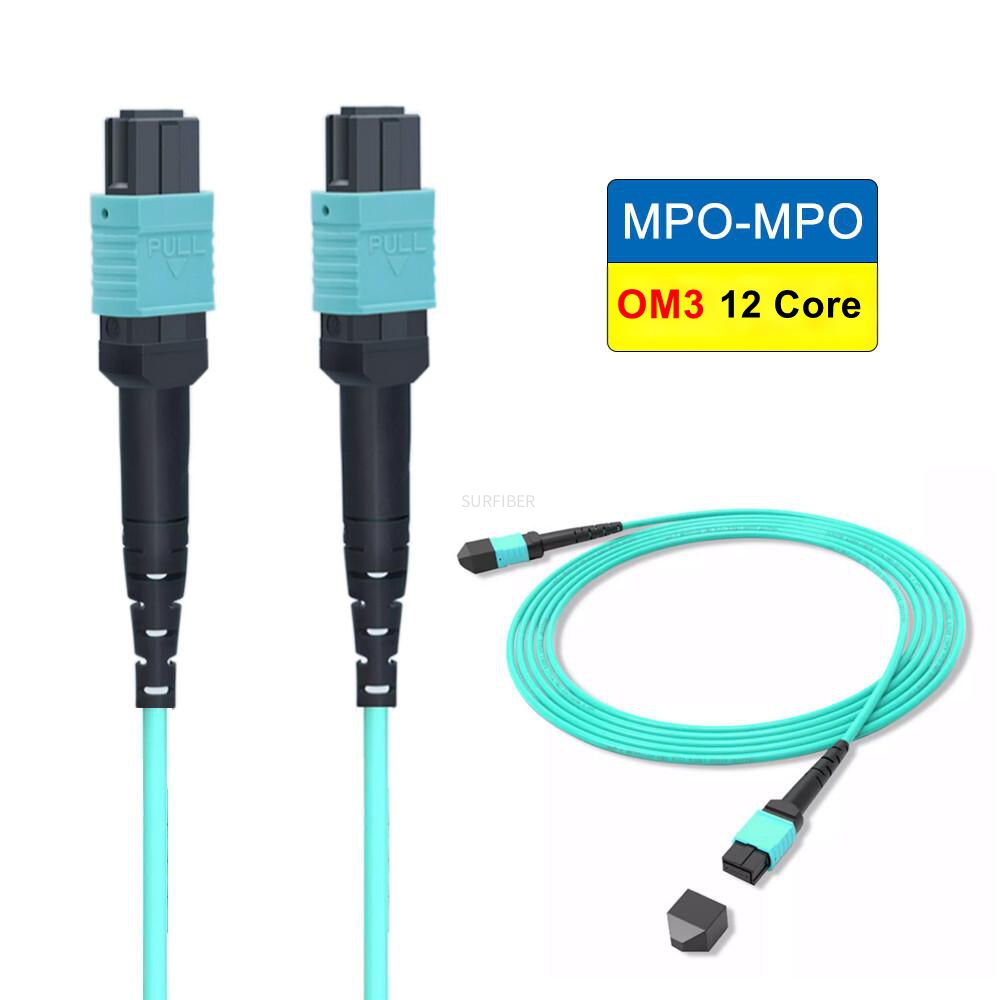

    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C
    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C
    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C
    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C
    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C
    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C
    ❤ Add to collection

  • High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C

    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C

    • U.S.＄4.87-50.00
      U.S.＄10.61
      U.S.＄4.87-50.00
      U.S.＄4.87-50.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Product parameters
    Products

    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C


    High-Performance MPO/MTP Patch Cord, 12 Core OM3 Multimode Fiber Cable, LSZH, Low Loss IL≤0.35dB, Type A/B/C


    Item
    Specification
    Item
    Specification
    Connector A
    MPO
    Connector B
    MPO
    Polish Type
    UPC to UPC
    Glass Fiber
    Multimode Fiber
    Fiber Mode
    OM3 50/125μm
    Wavelength
    850/1300nm
    Fiber Count
    12 Fibers
    Polarity
    Type A,B,C for Choice
    Cable Outside Diameter (OD)
    3.0mm
    Cable Jacket
    LSZH
    Min. Bend Radius (Optical Fiber)
    7.5mm
    Min. Bend Radius (Fiber Cable)
    20/10D (Dynamic/Static)
    Connector Durability
    500 times
    Tensile Strength
    80/240N (Long/Short Term)
    Insertion Loss
    0.35dB Max (0.15dB Typ.)
    Return Loss
    ≥20dB
    Attenuation @ 850nm
    ≤2.3dB/km
    Attenuation @ 1300nm
    ≤0.6dB/km
    Operating Temperature
    -10°C to 60°C (14℉ to 140℉)
    Storage Temperature
    -10°C to 70°C (14℉ to 158℉)
