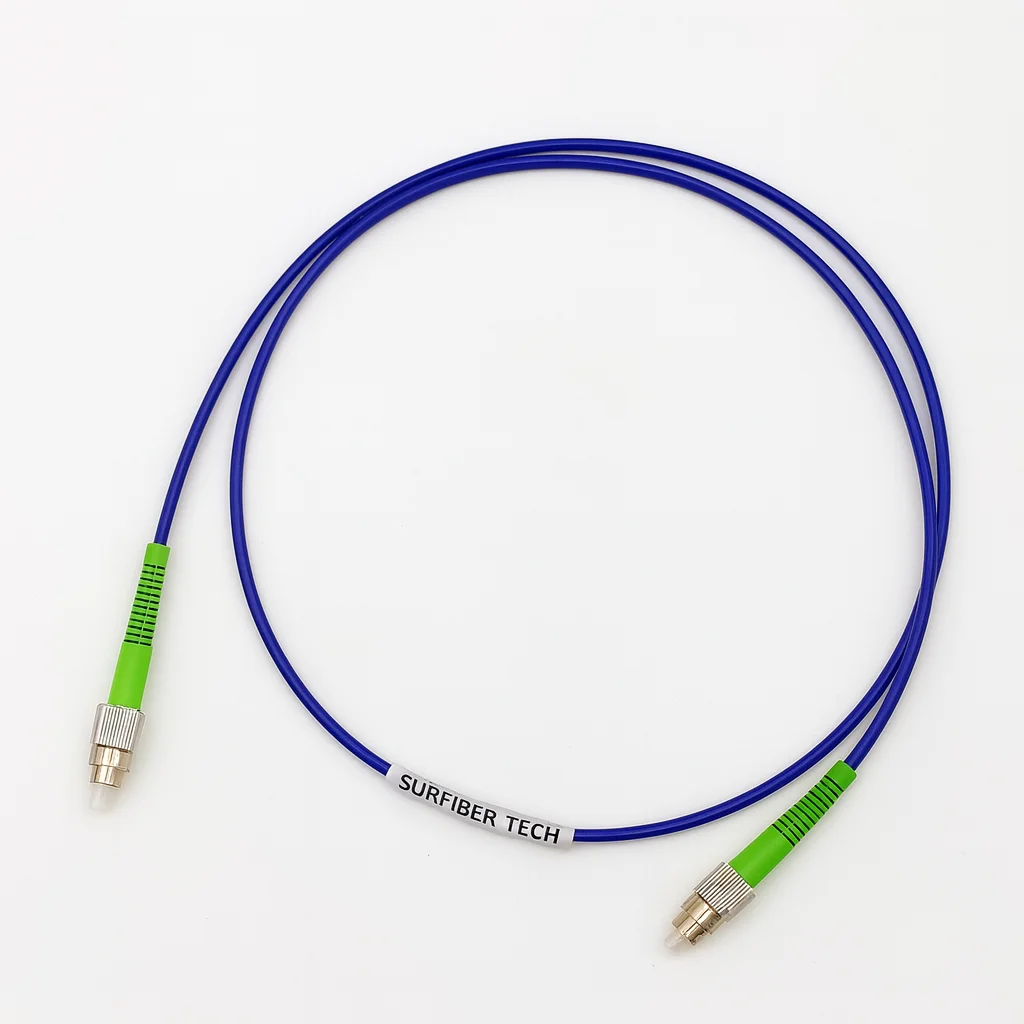

Polarization Maintaining Fiber Patch Cord PM Panda Bow-Tie Optical Patch Cable FC/SC/LC Connector SURFIBER/OEM Model SURSOF02
- Price: U.S.＄0.00

  Market Price: U.S.＄0.00

  MemberPrice：
  Ordinary： U.S.＄0.00

  VIP： U.S.＄0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy Now

Products

Product Description

Key Features

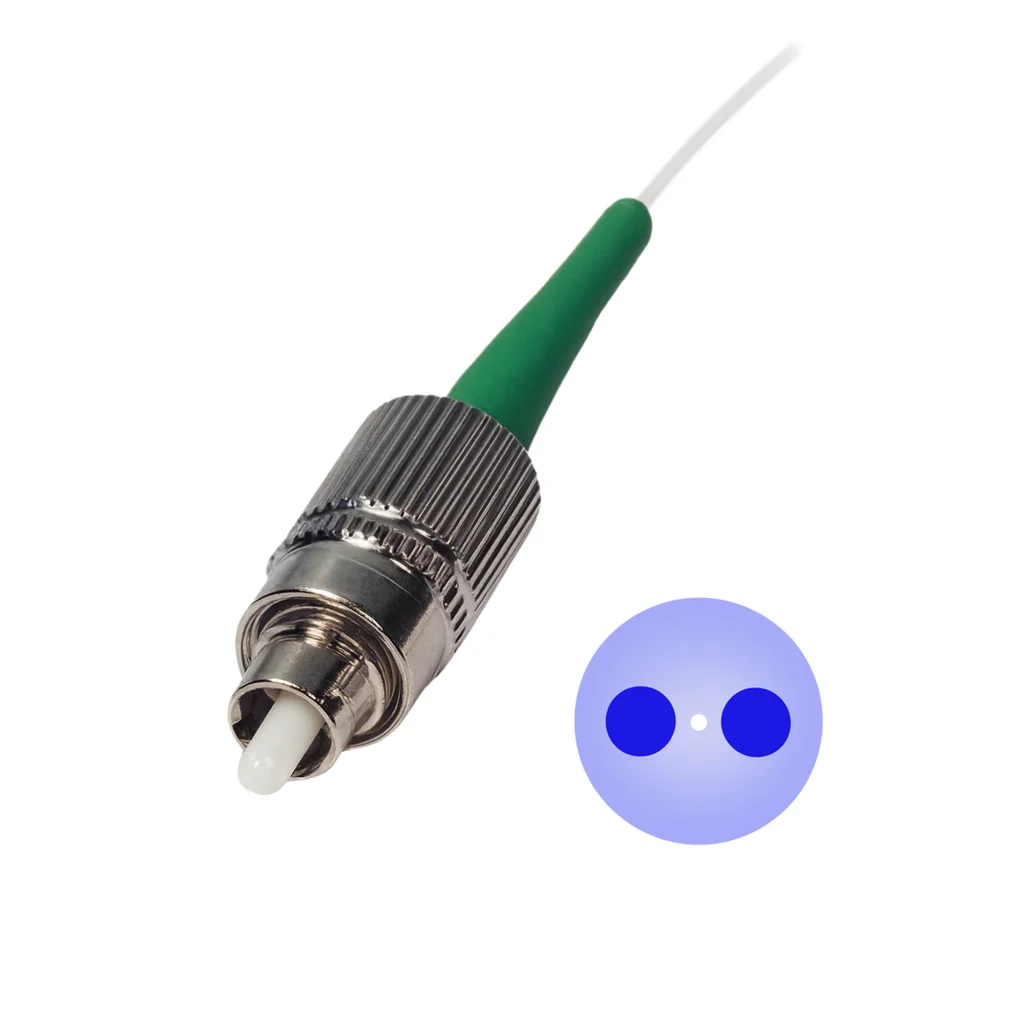

High Polarization Stability – Manufactured with Panda or Bow-Tie polarization maintaining fiber, ensuring stable polarization transmission for precision optical systems.

Wide Wavelength Options – Available for 460–1625nm operating wavelengths, including PM460, PM630, PM780, PM980, PM1060,PM1310 and PM1550 models to meet different application requirements.

Low Loss & High Reliability – Featuring low insertion loss, high return loss, and UV cured dual-acrylate coating for durability,tested under -40°C to +85°C operating conditions.

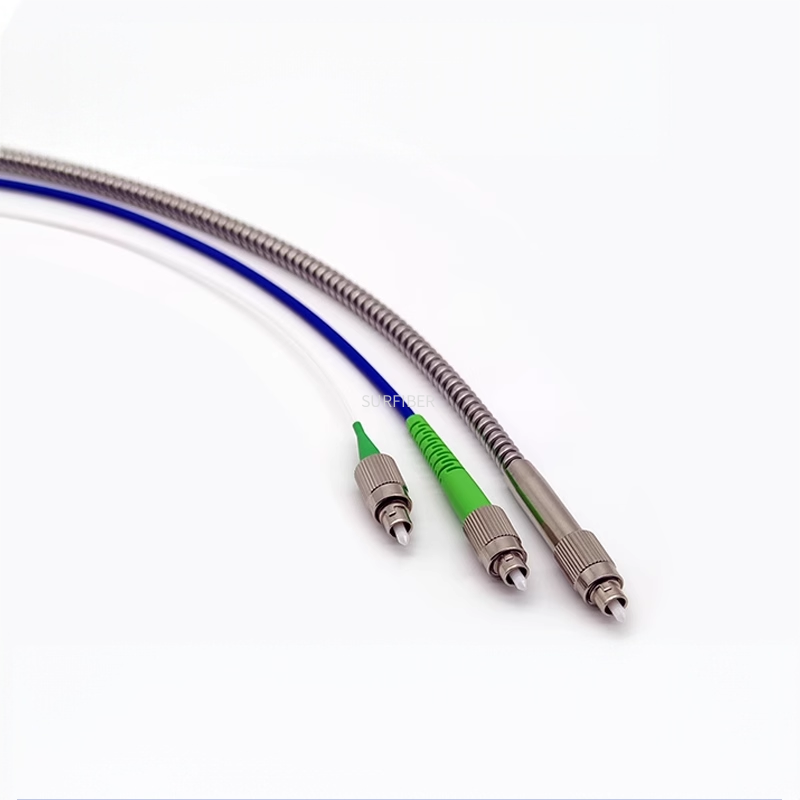

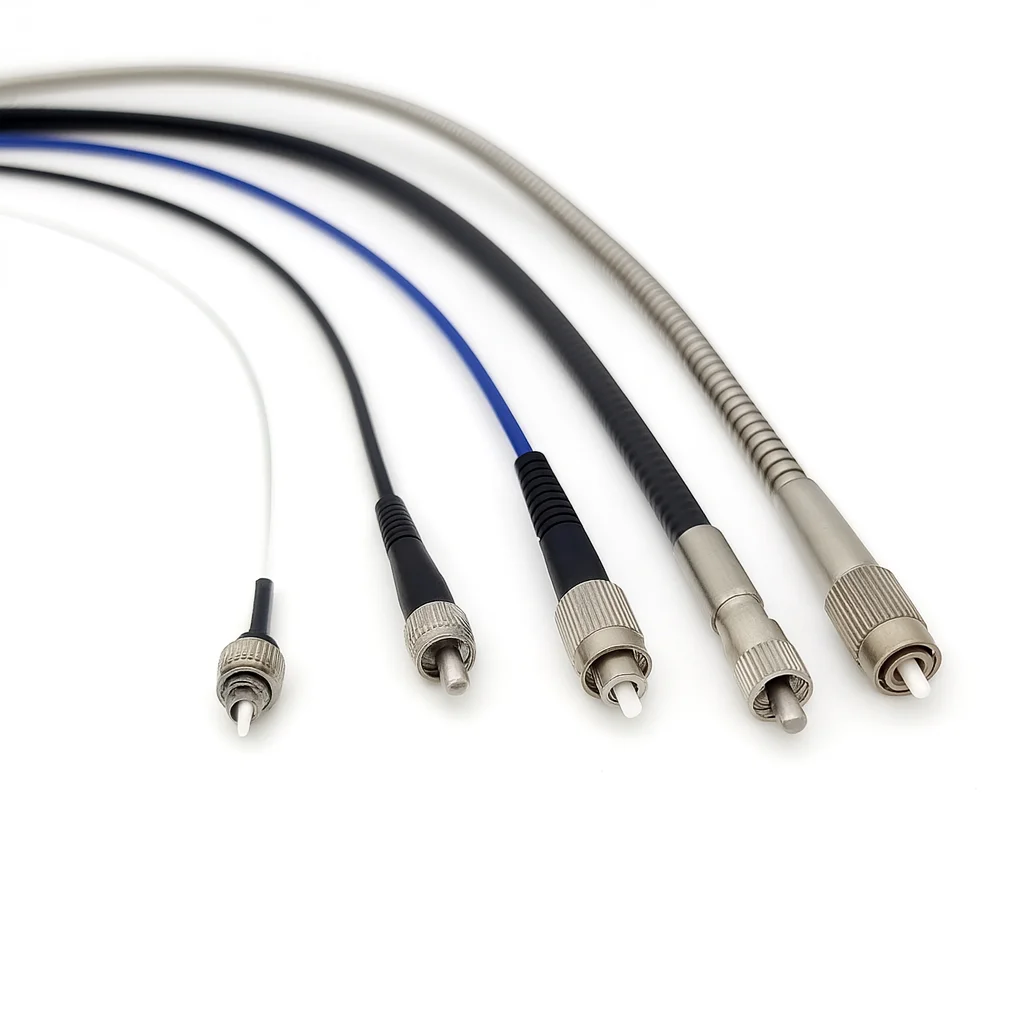

Connector & Customization – FC/PC, FC/APC, SC, LC connectors or bare fiber pigtails optional. Custom length, jacket material, and axis alignment (fast/slow axis) available.

Professional Applications – Ideal for fiber optic gyroscope (FOG), quantum communication, ultrafast laser systems, coherent communication, and optical sensing experiments.

Specification

Model Parameter	PM460-HP	PM630-HP	PM780-HP
Operating Wavelength	460-700nm	620-850nm	770-1100nm
Numerical Aperture (NA)	0.12	0.12	0.12
Mode Field Diameter	3.3±0.5μm@515nm	4.5±0.5μm@630nm	5.3±1.0μm@850nm
Cutoff Wavelength	410±40nm	570±50nm	710±60nm
Core Attenuation	≤100.0dB/km@488nm	≤15.0dB/km@630nm	≤4.0dB/km@850nm
Core Diameter	3.0um	3.5um	4.5um
Cladding Diameter	125.0±1.0um
Coating Diameter	245.0±15.0um
Coating Material	UV Cured DualAcrylate
Proof Test Level	≥200kpsi(1.4GN/m2)
Operating Temperature Range	40~85℃
Short-term Bending Radius	≥6mm
Long-term Bending Radius	≥13mm

Model Parameter	PM980-XP	PM1060-XP	PM1550-XP
Operating Wavelength	970-1550nm	980-1600nm	1440-1625nm
Numerical Aperture (NA)	0.12	0.14	0.125
Mode Field Diameter	6.6±0.5μm@980nm	5.9±0.5μm@980nm	10.1±0.4μm@1550nm
Cutoff Wavelength	920±50nm	920±30nm	1370±70nm
Core Attenuation	≤2.5dB/km@980nm	≤2.1dB/km@980nm	≤1.0dB/km@1550nm
Core Diameter	3.0um	5.8um	4.5um
Cladding Diameter	125.0±1.0um
Coating Diameter	245.0±15.0um
Coating Material	UV Cured DualAcrylate
Proof Test Level	≥200kpsi(1.4GN/m2)
Operating Temperature Range	-40~85℃
Short-term Bending Radius	≥6mm
Long-term Bending Radius	≥13mm

Wavelength	Connector	Working Axis	Jacket	Fiber Length

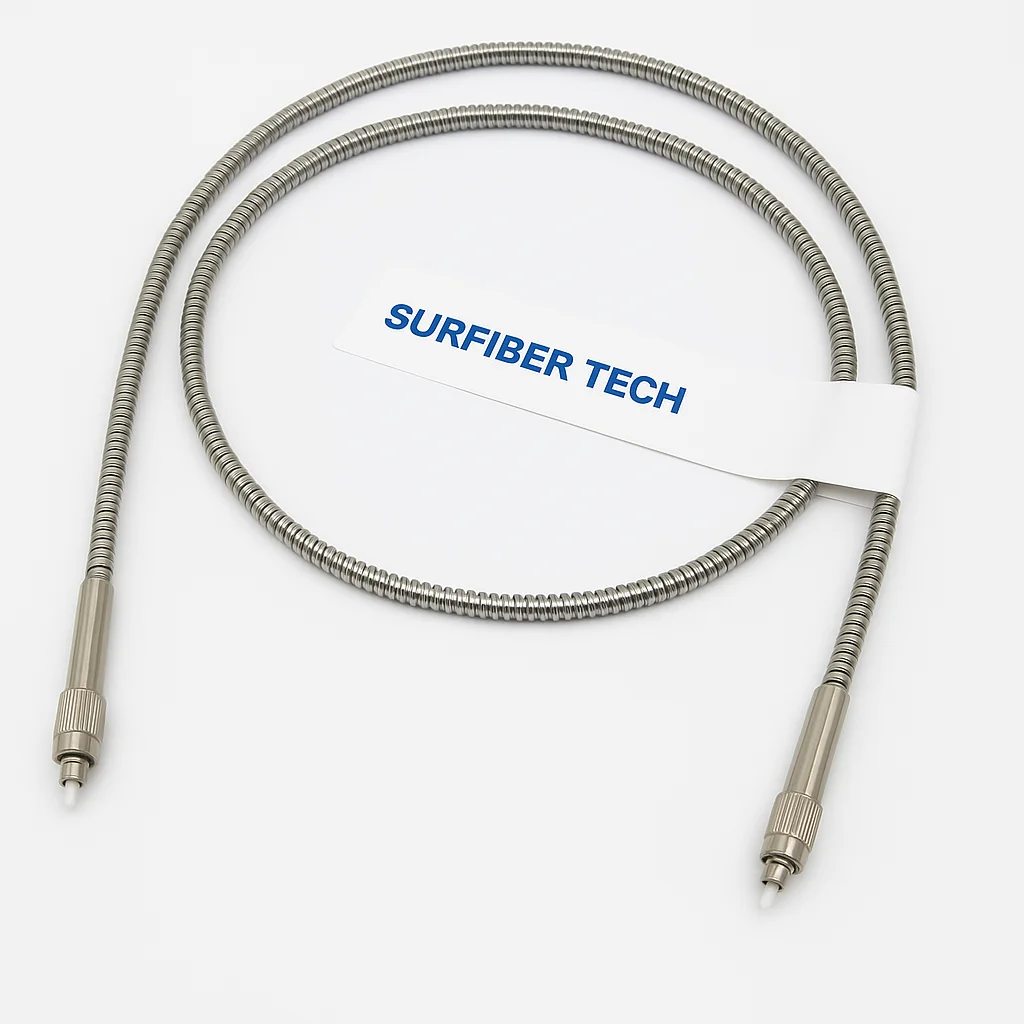

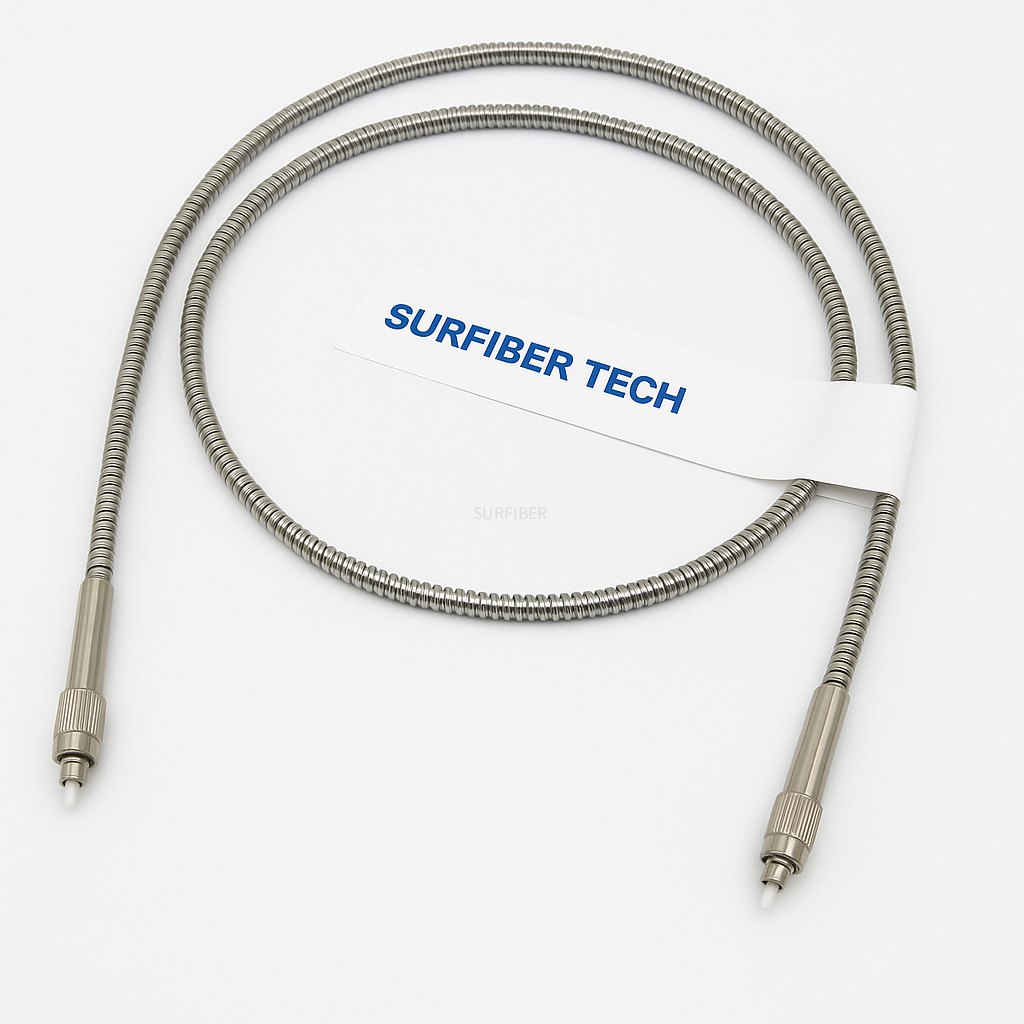

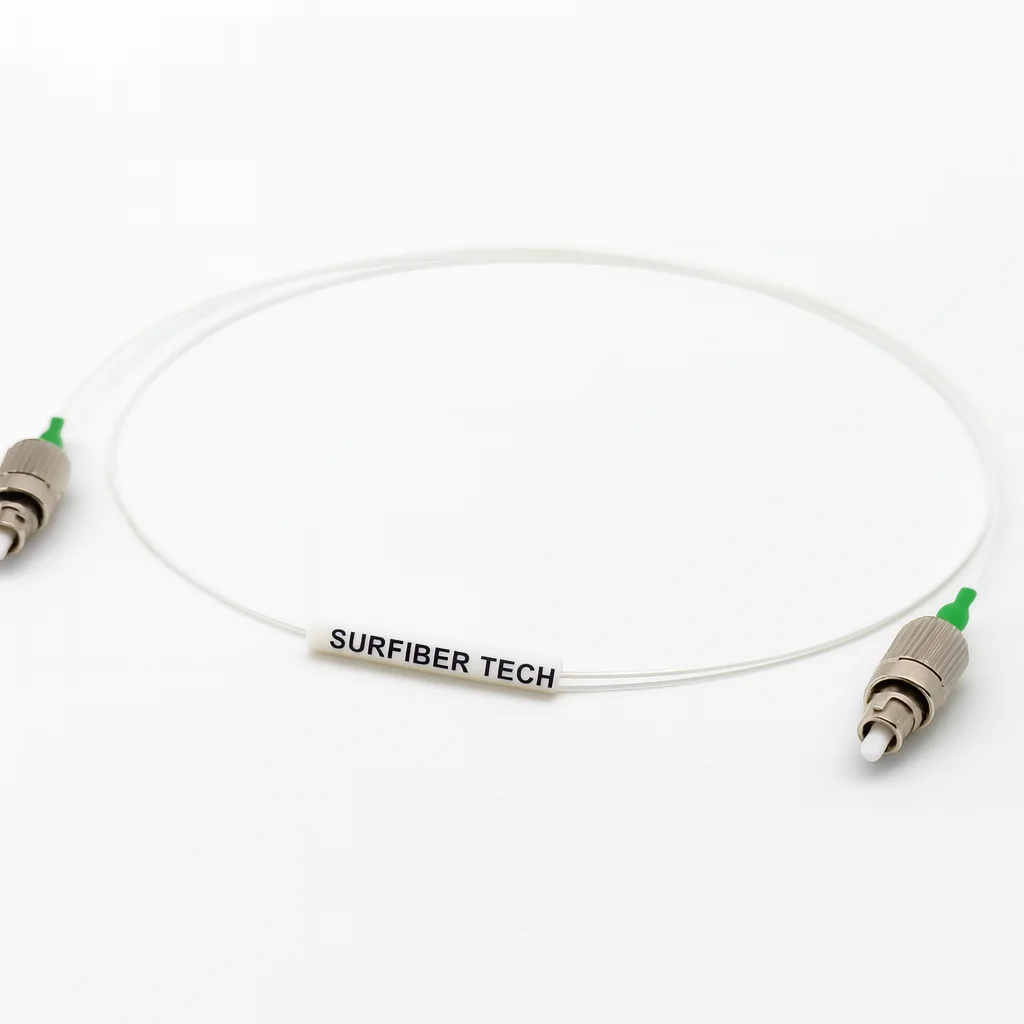

PM980: 980 nm PM1310: 1310 nm PM1550: 1550 nm O: Others	FA: FC/APC FC: FC/UPC SA: SC/APC SC: SC/UPC O: Others	S: Slow Axis Alignment F: Fast Axis Alignment	B: Bare Fiber 0.9p: 0.9 mm Loose Tube 3p: 3.0 mm Jacket 3ar: 3.0 mm Armored Jacket O: Others	10: 1.0 m 30: 3.0 m O: Others
