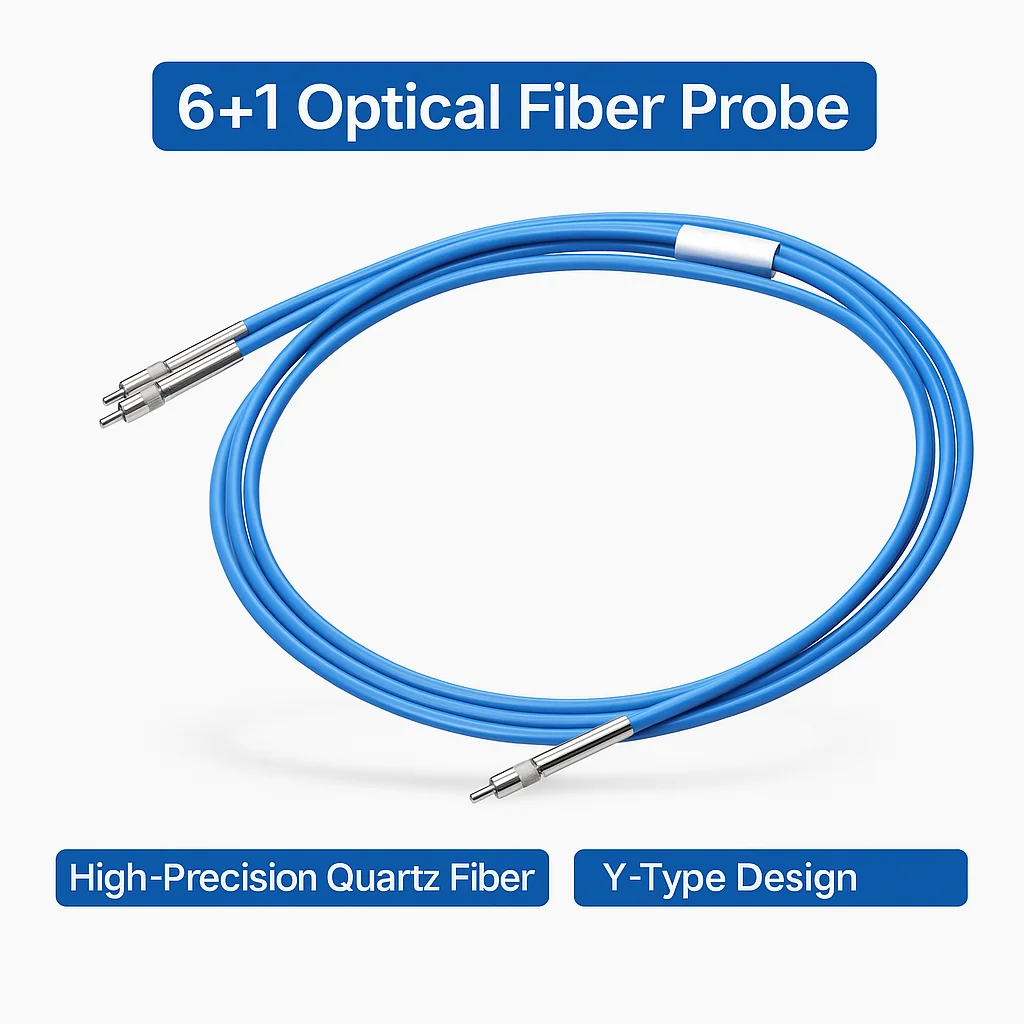

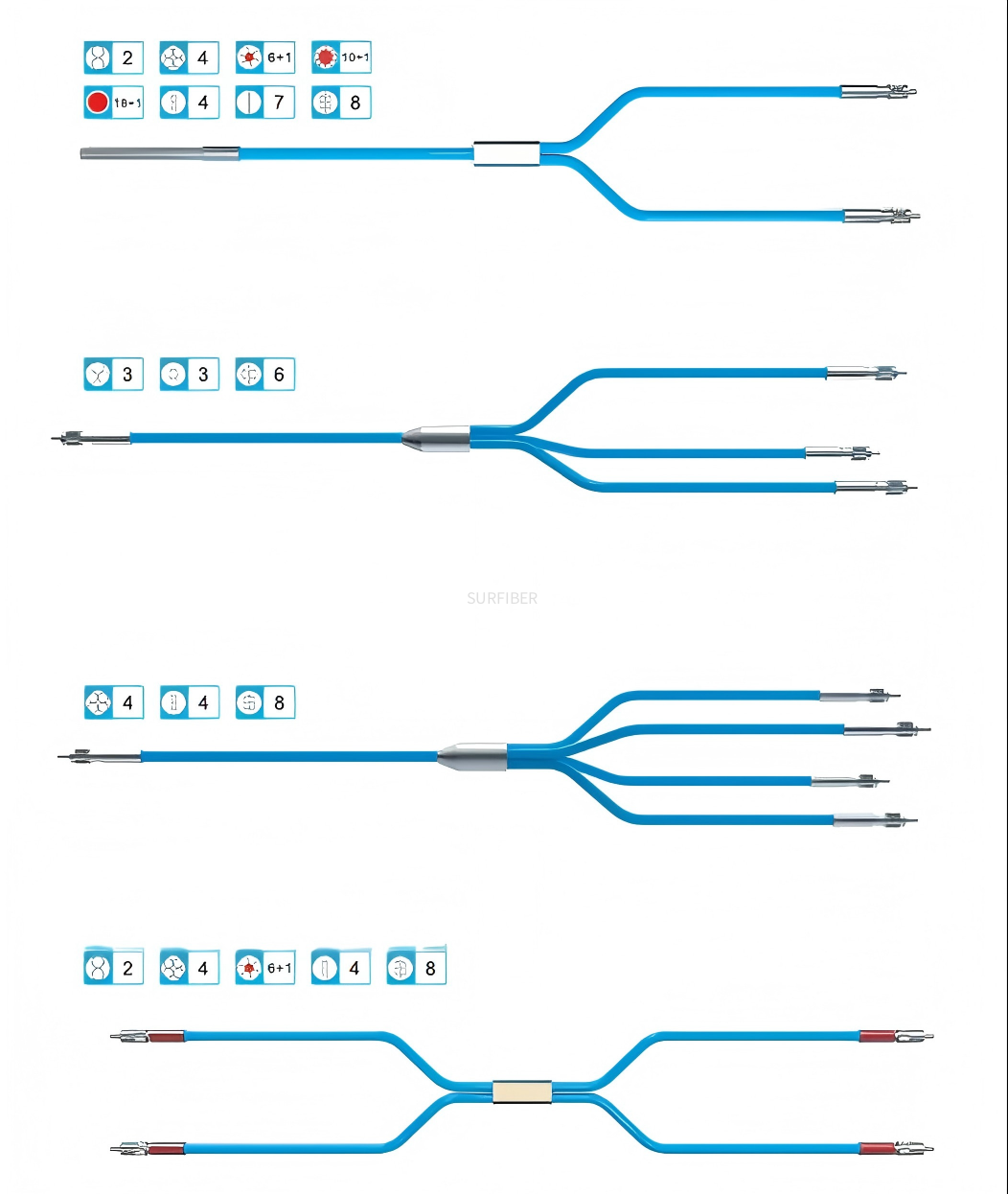

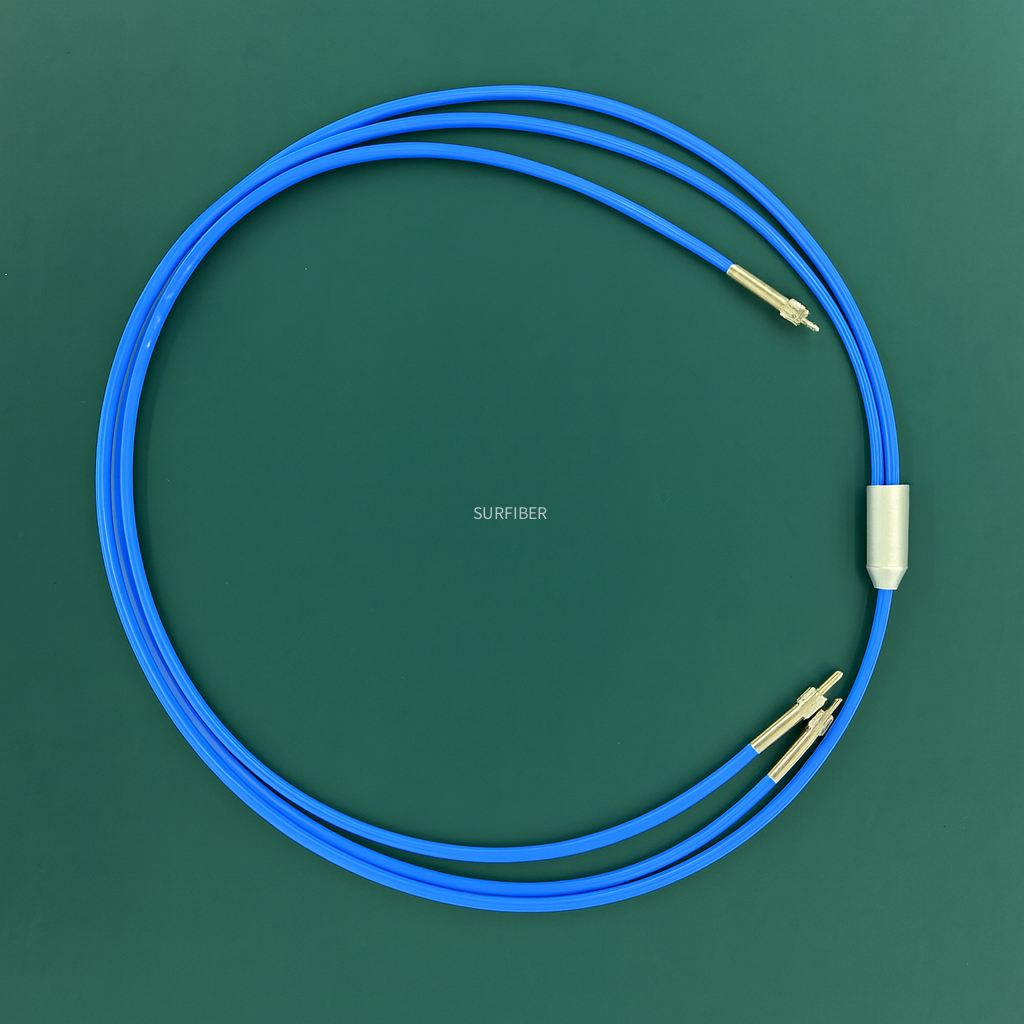

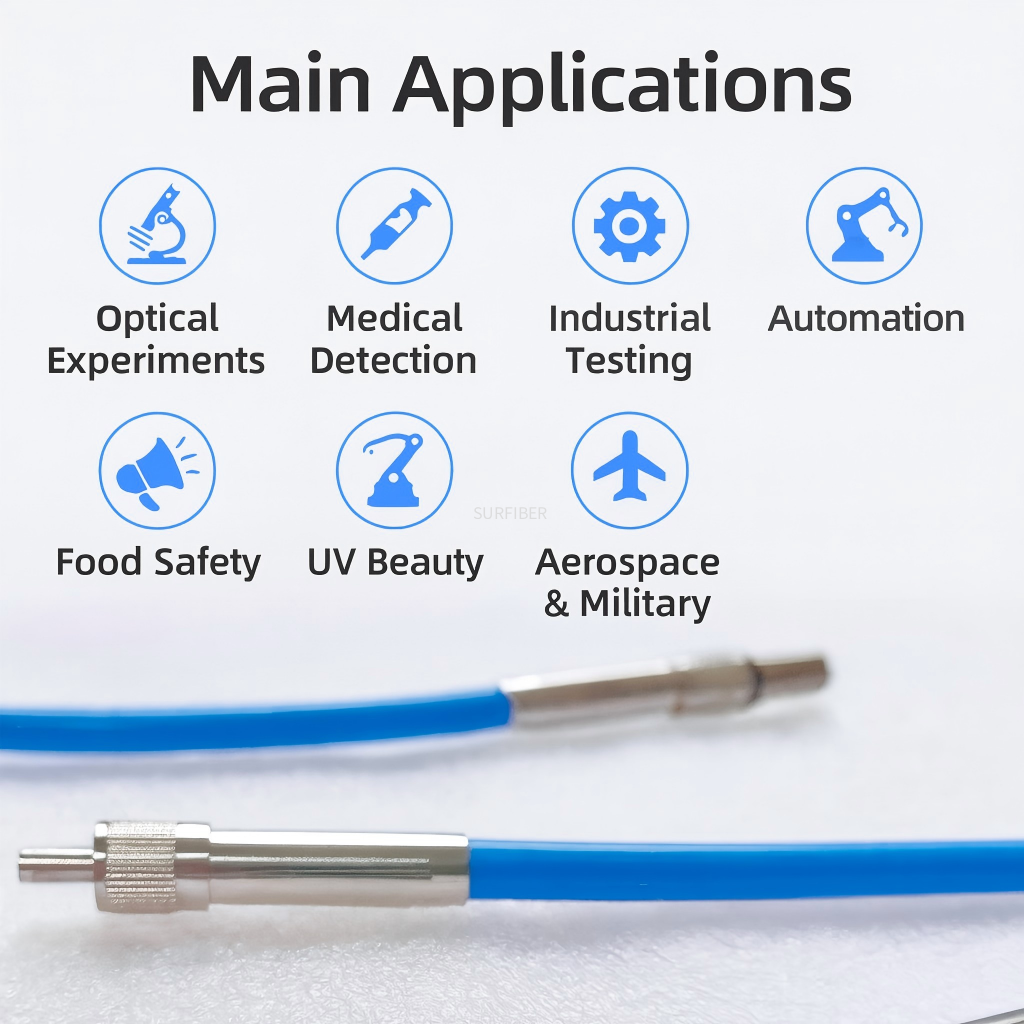

  • Laser Optical Fiber Probe Bundle | 2-Core to 18+1 Quartz Fiber | Y-Type Multi-Core Design | OEM ODM Custom Laser Fiber Cable
    Laser Optical Fiber Probe Bundle | 2-Core to 18+1 Quartz Fiber | Y-Type Multi-Core Design | OEM ODM Custom Laser Fiber Cable
    Laser Optical Fiber Probe Bundle | 2-Core to 18+1 Quartz Fiber | Y-Type Multi-Core Design | OEM ODM Custom Laser Fiber Cable
    Laser Optical Fiber Probe Bundle | 2-Core to 18+1 Quartz Fiber | Y-Type Multi-Core Design | OEM ODM Custom Laser Fiber Cable
    Laser Optical Fiber Probe Bundle | 2-Core to 18+1 Quartz Fiber | Y-Type Multi-Core Design | OEM ODM Custom Laser Fiber Cable
    Laser Optical Fiber Probe Bundle | 2-Core to 18+1 Quartz Fiber | Y-Type Multi-Core Design | OEM ODM Custom Laser Fiber Cable
    Laser Optical Fiber Probe Bundle | 2-Core to 18+1 Quartz Fiber | Y-Type Multi-Core Design | OEM ODM Custom Laser Fiber Cable
    ❤ Add to collection

  • Laser Optical Fiber Probe Bundle | 2-Core to 18+1 Quartz Fiber | Y-Type Multi-Core Design | OEM ODM Custom Laser Fiber Cable

    • U.S.＄0.00
      U.S.＄0.00
      U.S.＄0.00
      U.S.＄0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Products

Product Description

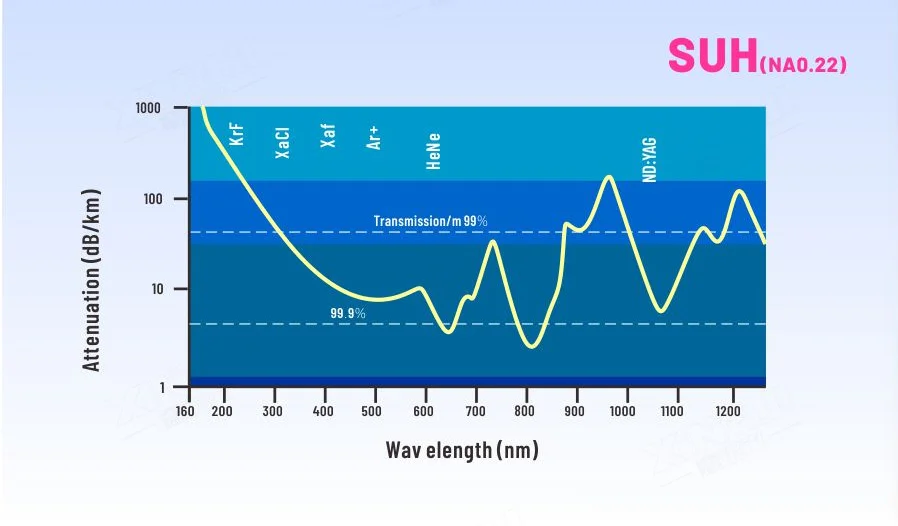

UV-Optimized Optical Fiber Attenuation

Parameter
SUH50 22A
SUH105 22A
SUH200 22A
SUH300 22A
SUH400 22A
SUH600 22A
Fiber Core Diameter (μm)
50
105
200
300
400
600
Cladding Diameter (μm)
125
125
220
330
440
660
Coating Diameter (μm)
245
245
320
500
650
960
Core Material
High OH Quartz Material
Cladding Material
Fluorine-doped Quartz Material
Coating Material
Dual-layer Acrylate Material
Minimum Bending Radius
<200D (D = core)
NA (Numerical Aperture)
0.22 ± 0.02
Fiber Type
SI (Step Index)
Acceptance Angle
25.4°
Emission Angle
12.7°
Operating Wavelength
200–1200 nm
Length (m)
Default 1 m or 2 m (customizable)
Operating Temperature (°C)
-40 ~ +85
Near-Infrared Optimized Optical Fiber Attenuation
Fiber Core Diameter (µm)
105
200
300
400
600
Cladding Diameter (µm)
125
220
330
440
660
Coating Diameter (µm)
245
320
500
650
960
Fiber Core Material
Low-OH Quartz Material
Fiber Cladding Material
Doped Quartz Material
Coating Material
UV-Curable Resin Material
Minimum Bending Radius
<200D (D = core)
NA (Numerical Aperture)
0.22 ± 0.02
Fiber Type
SI (Step Index)
Acceptance Angle
25.4°
Divergence Angle
12.7°
Operating Wavelength
400–2500 nm
Length (m)
Default 1 m or 2 m (customizable)
Operating Temperature (°C)
–40 ~ +85

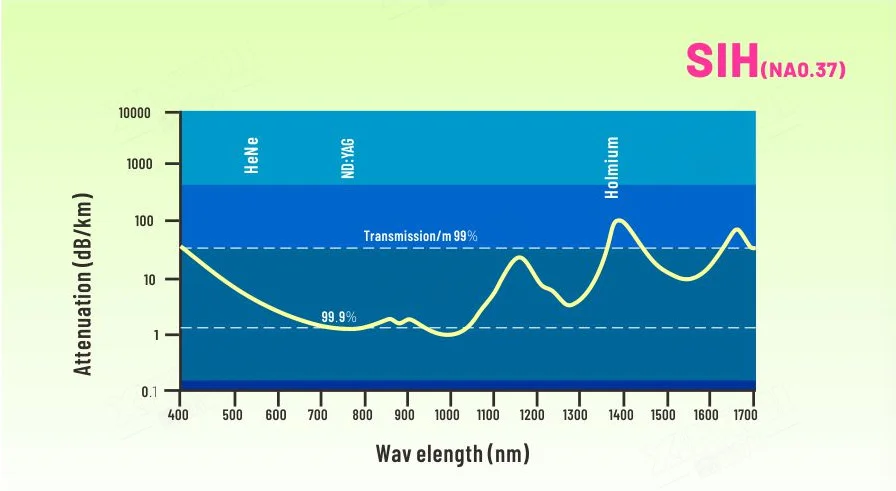

Hard Polymer Clad Quartz Fiber (HCS Fiber) Attenuation
Parameter
SIH200 37A
SIH300 37A
SIH400 37A
SIH600 37A
Core Diameter (µm)
200
300
400
600
Cladding Diameter (µm)
230
330
430
630
Coating Diameter (µm)
500
650
730
750 / 1040
Fiber Material
Low-OH Quartz
Fiber Coating Material
Fluoropolymer
Buffer Layer Material
Tefzel
Minimum Bending Radius
<200D (D = core)
Numerical Aperture (NA)
0.37 ± 0.02
Fiber Type
Step Index (SI)
Light Acceptance Angle
43.4°
Light Emission Angle
21.7°
Transmission Wavelength Range
400 – 2500 nm
Length (m)
Standard 1 m or 2 m (customizable)
Operating Temperature (°C)
-40 ~ +85
Please contact us to get the full technical datasheet and customization options.

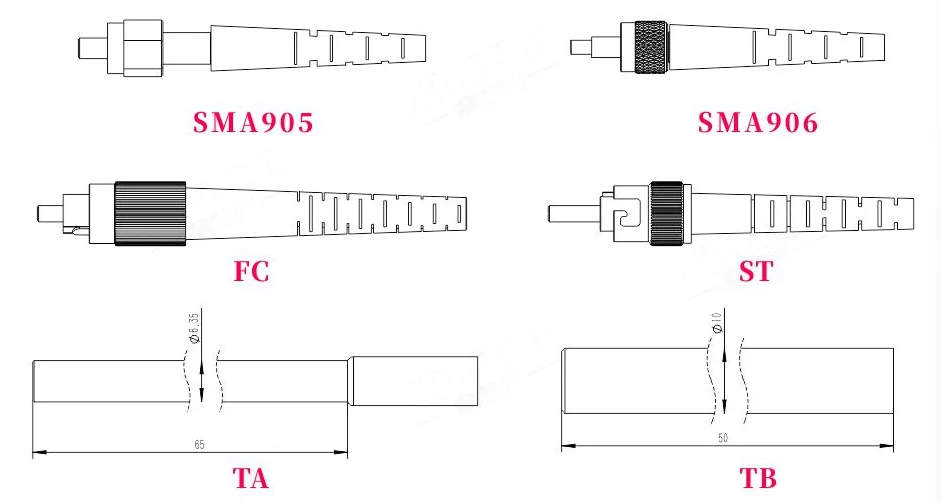

Connector Type
SMA905
SMA906
FC
ST
TA
TB
Ferrule Diameter (mm)
3.17
3.17
2.5
2.5
6.35
10
Ferrule Length (mm)
9.8
9.8
8
8
65
50
Core Diameter (μm)
80–2600
80–1500
80–1500
80–1500
80–1500
80–1500
Ferrule Material
Stainless Steel / Ceramic
Stainless Steel
Stainless Steel / Ceramic
Stainless Steel / Ceramic
Stainless Steel
Stainless Steel
Thread
1/4–36 UNS
1/4–36 UNS
M8
–
–
–
Nut
Hexagon / Round
Hexagon / Round
Round
Round
–
–
