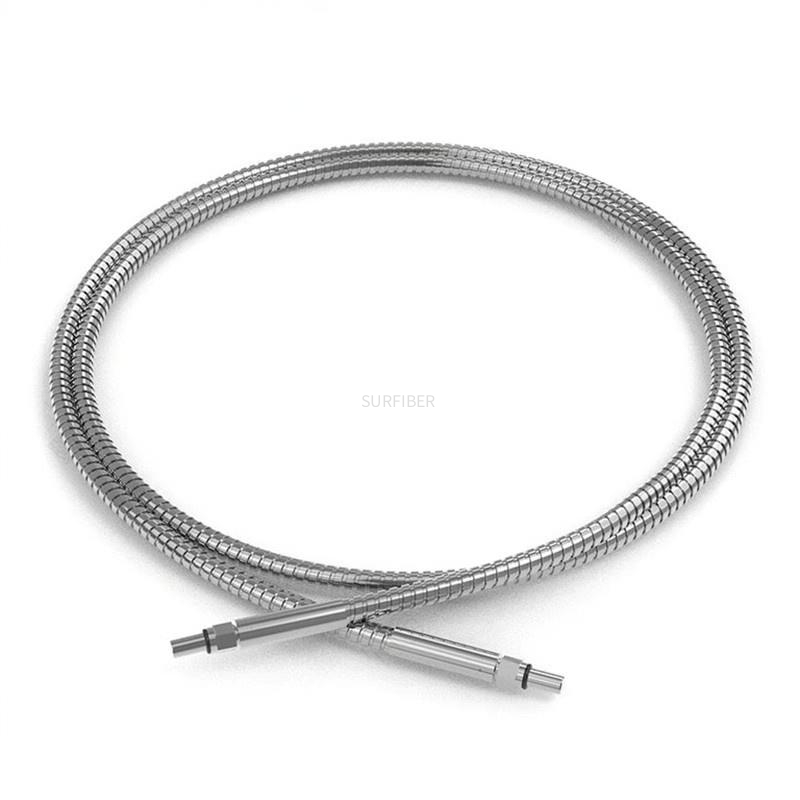

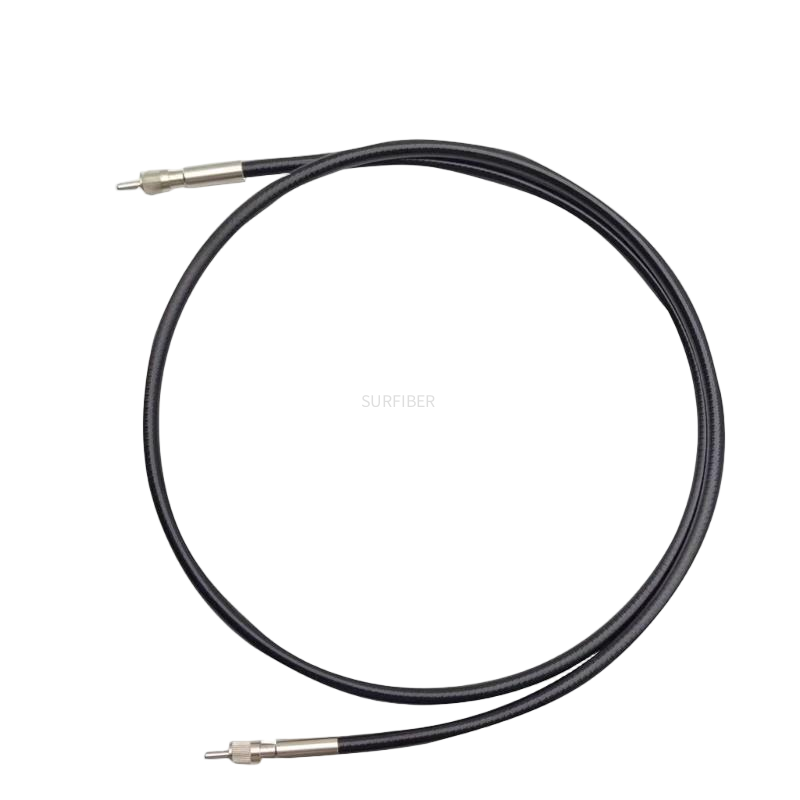

High Power Quartz Optical Fiber 50 1000um Step Index Multimode NIR Fiber 400 2500nm SMA905/FSMA Connectors SURFIBER/OEM Brand
- Price: U.S.＄0.00

  Market Price: U.S.＄0.00

  MemberPrice：
  Ordinary： U.S.＄0.00

  VIP： U.S.＄0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy Now

Products

Product Description

Key Features
Wide Wavelength Range – Supports 400–2500nm from visible to near-infrared, ideal for spectroscopy, laser transmission, and sensing applications.

Large Core Options – Multiple diameters available (50µm, 105µm, 135µm, 200µm, 300µm, 400µm, 600µm, 800µm, 1000µm) for high-power and multimode light delivery.

High Efficiency Coupling – Step-index design with NA 0.22±0.02 ensures excellent light acceptance and stable transmission.

Durable Construction – Low-OH silica core, fluorine-doped cladding, and polyimide coating provide high-temperature resistance (–40°C to +85°C) and reliability in harsh environments.

Versatile Applications – Perfect for high-power laser energy delivery, fiber-coupled spectroscopy, medical laser probes,industrial inspection, and optical sensing.

Specification

Parameter	Value
Core/Cladding Diameter (µm)	IR50/125: 50±2 / 125±10
	IR105/125: 105±2 / 125±10
	IR135/155: 135±2 / 155±20
	IR200/220: 200±5 / 220±20
	IR300/330: 300±13 / 330±13
	IR400/440: 400±15 / 440±20
	IR500/550: 500±15 / 550±20
	IR600/660: 600±15 / 660±20
	IR800/880: 800±15 / 880±20
	IR1000/1100: 1000±15 / 1100±20
Coating Diameter (µm)	245±10 / 245±10 / 320±10 / 420±20 / 520±20 / 700±20 / 900±20 / 970±20 / 1200±20 / 1400±30
Core Material	Low-OH Fused Silica
Cladding Material	Fluorine-Doped Silica
Buffer Material	Polyimide Resin
Minimum Bend Radius	<200D (D = core diameter)
Numerical Aperture (NA)	0.22 ± 0.02
Fiber Type	SI (Step-Index)
Acceptance Angle	25.4° (full angle)
Divergence Angle	12.7° (half angle)
Operating Wavelength	400–2500 nm
Standard Length (m)	Default 1 m or 2 m (customizable)
Operating Temperature (°C)	–40 °C ~ +85 °C

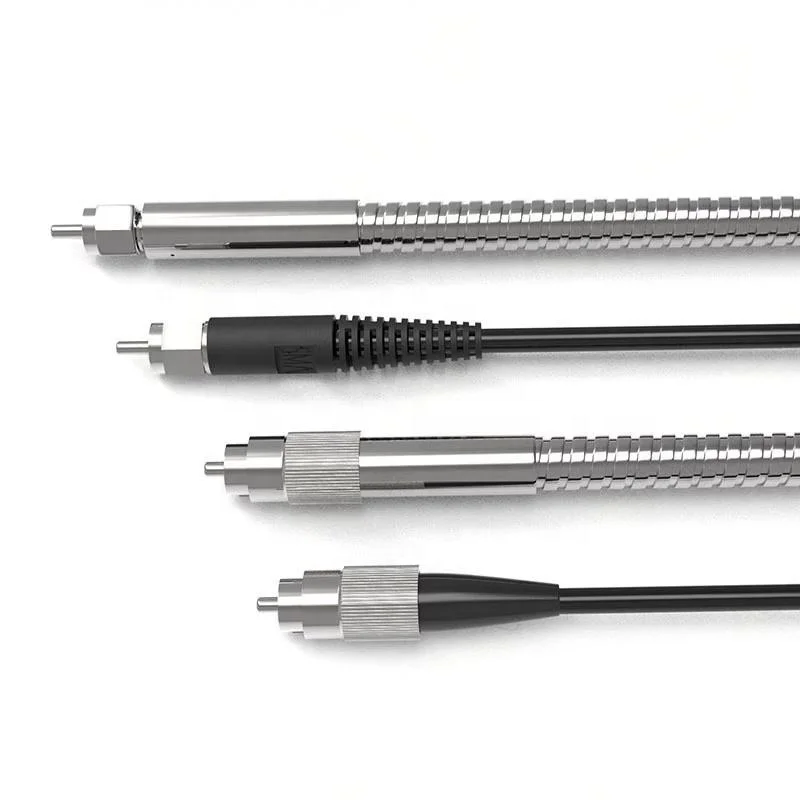

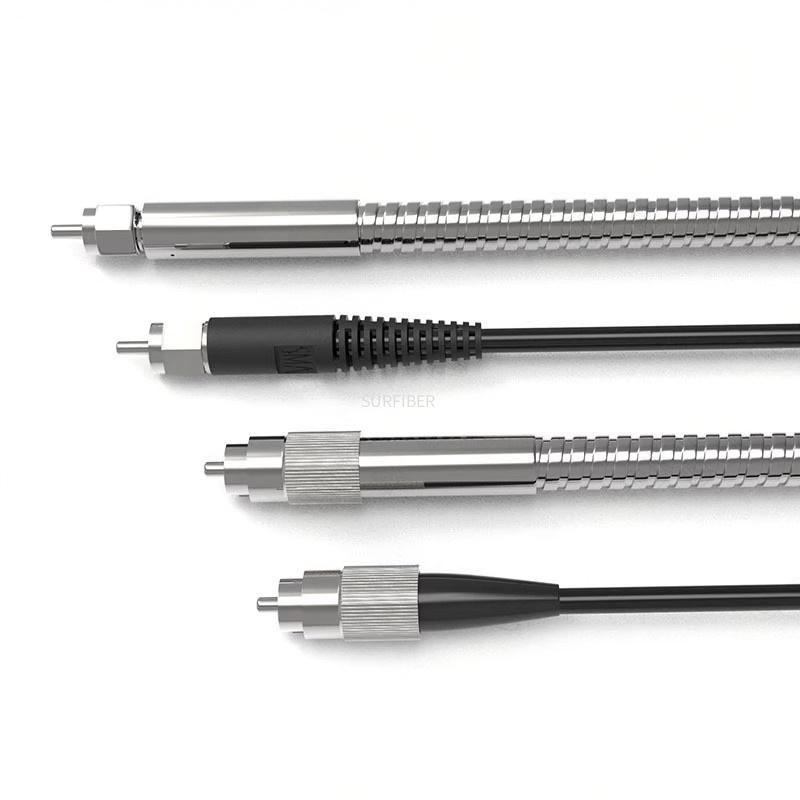

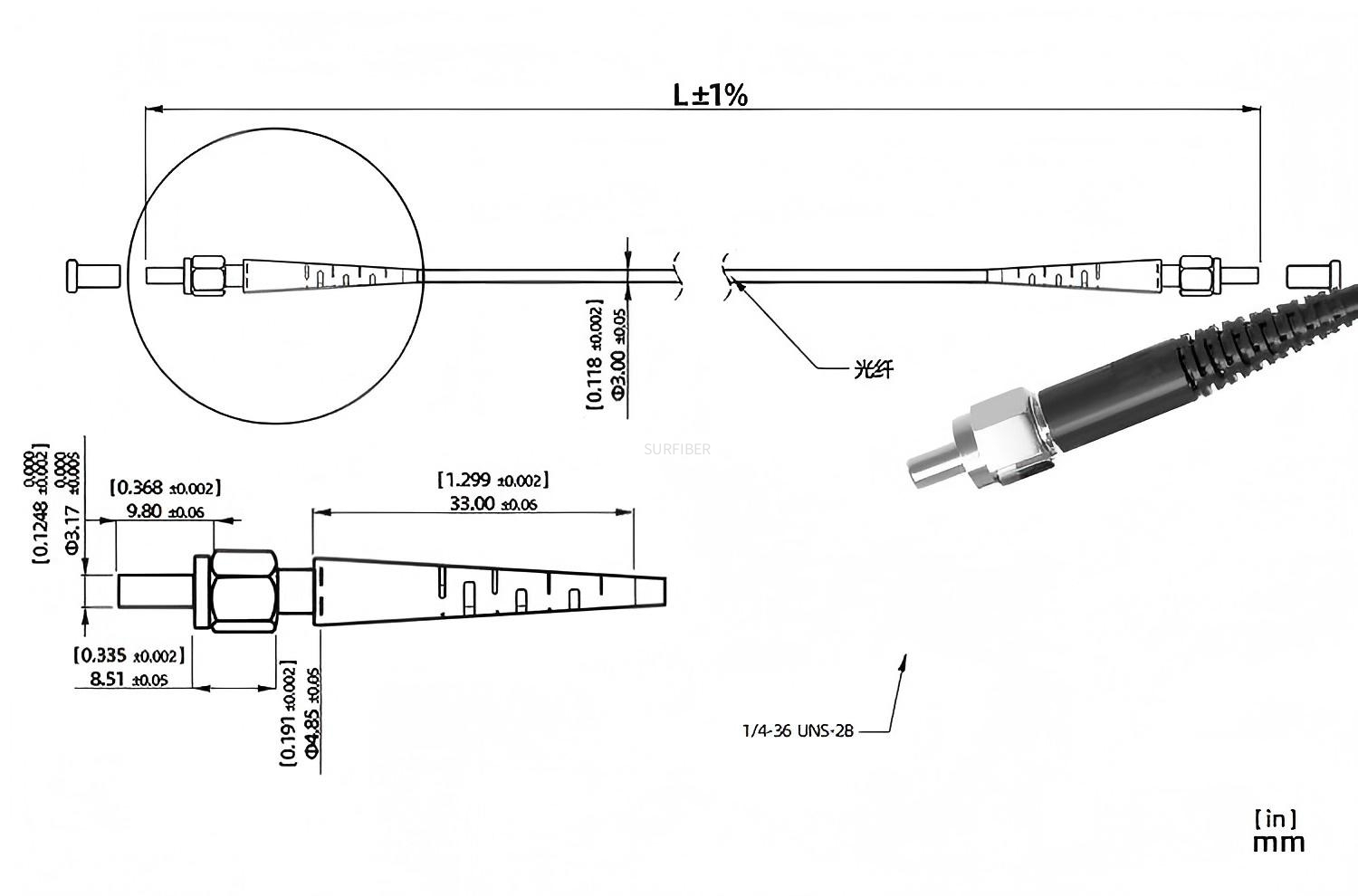

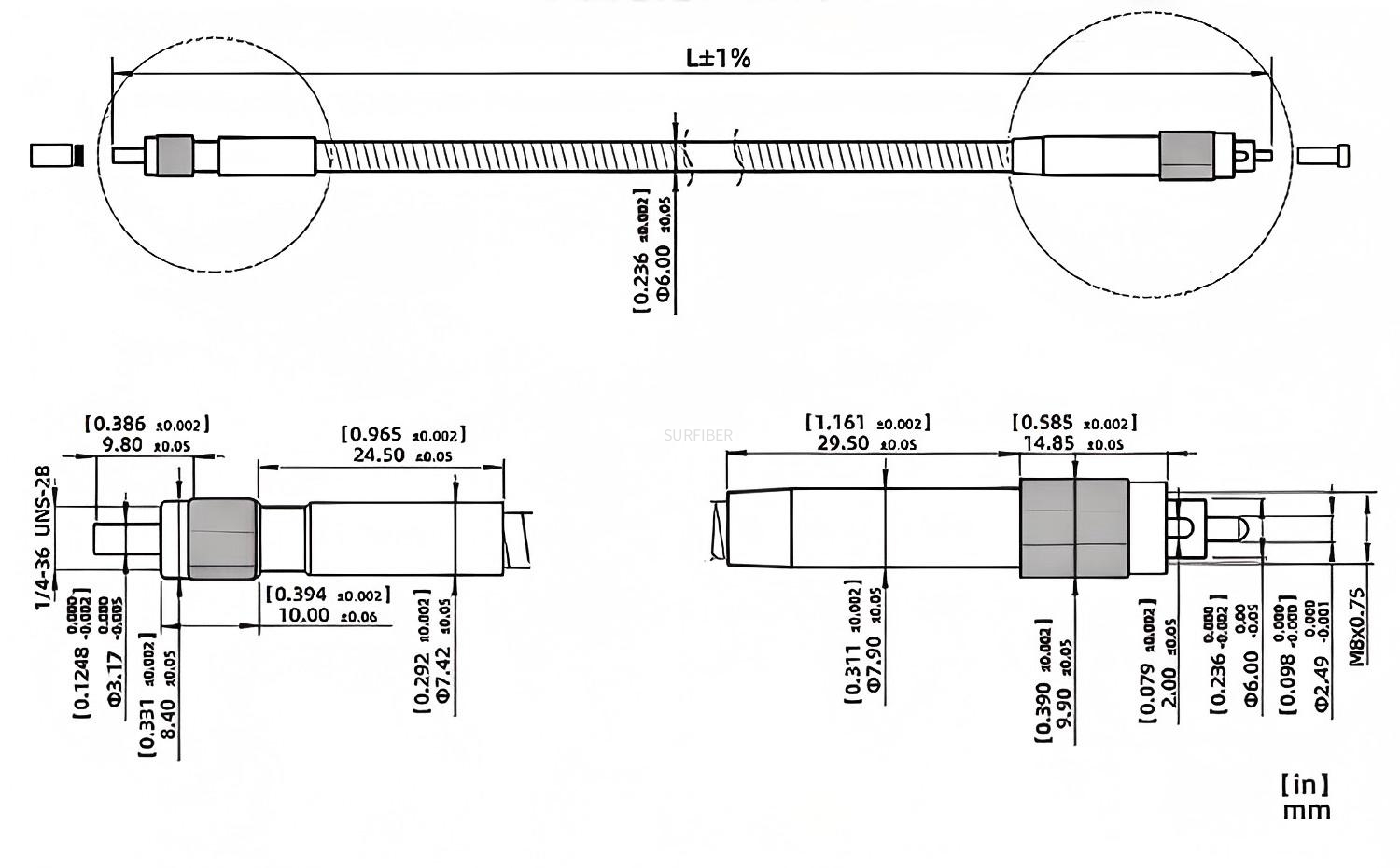

Available Standard / Custom Fiber Connectors

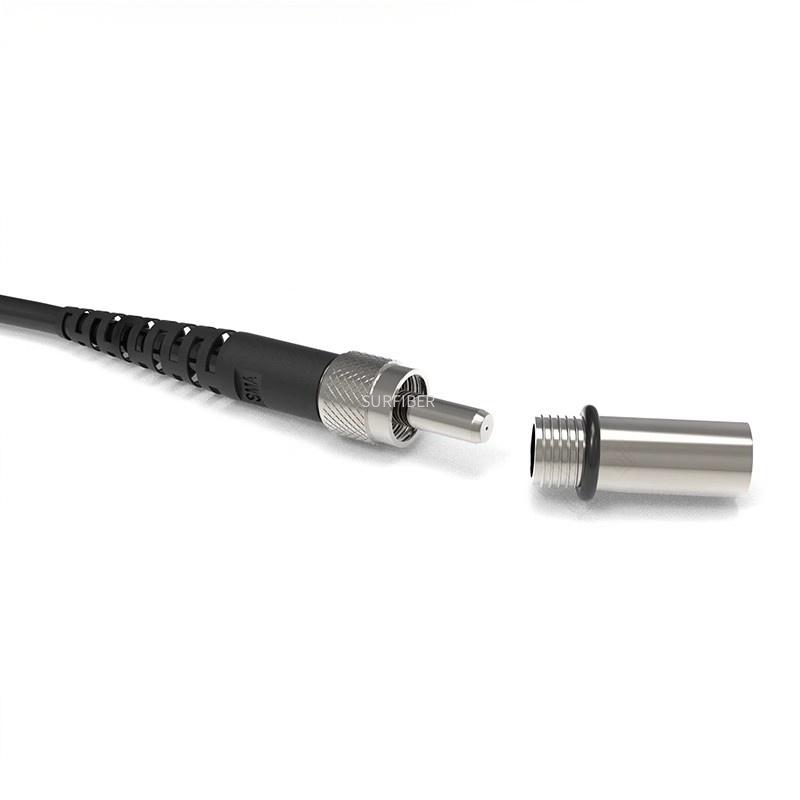

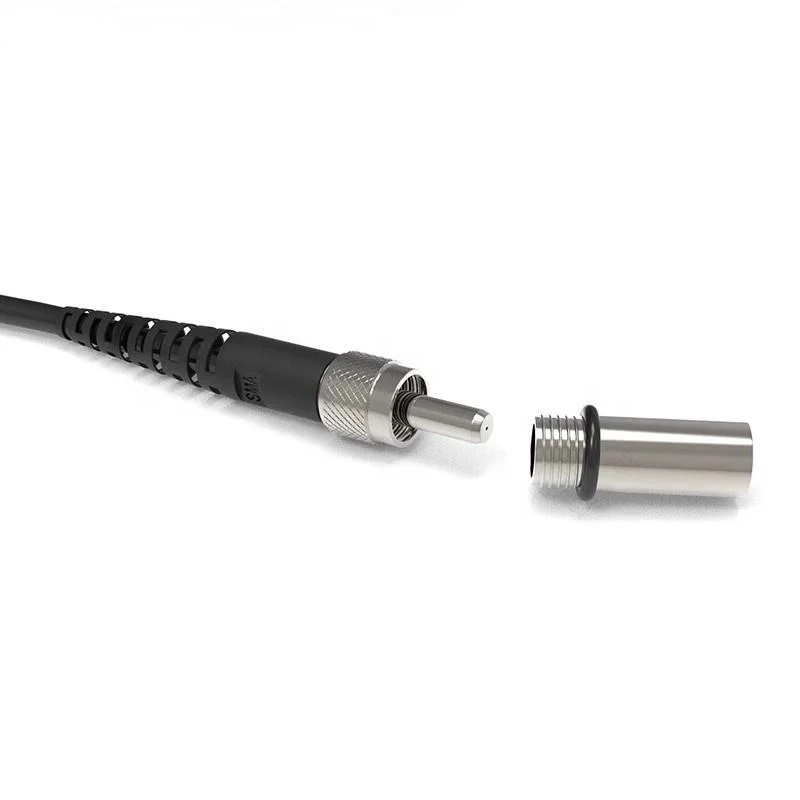

Connector Type	SMA905	HPSMA905	FC	ST	TA	TB	TC
Ferrule Diameter (mm)	3.17		2.5		6.35	10	3.2
Ferrule Length (mm)	9.8		8		65 (customizable)	50 (customizable)	30 (customizable)
Ferrule Inner Diameter (µm)	100–2600		100–2000		100–2600 (customizable)	100–2600 (customizable)	100–2600 (customizable)
Ferrule Material	Ceramic / Stainless Steel / Copper-Nickel		Ceramic / Stainless Steel		Stainless Steel / Brass	Stainless Steel / Brass	Stainless Steel / Brass
Thread Appearance	1/4-36-UNS		–		–	–	–
Thread Type	Straight / Knurled / Hexagonal		–		–	–	–
